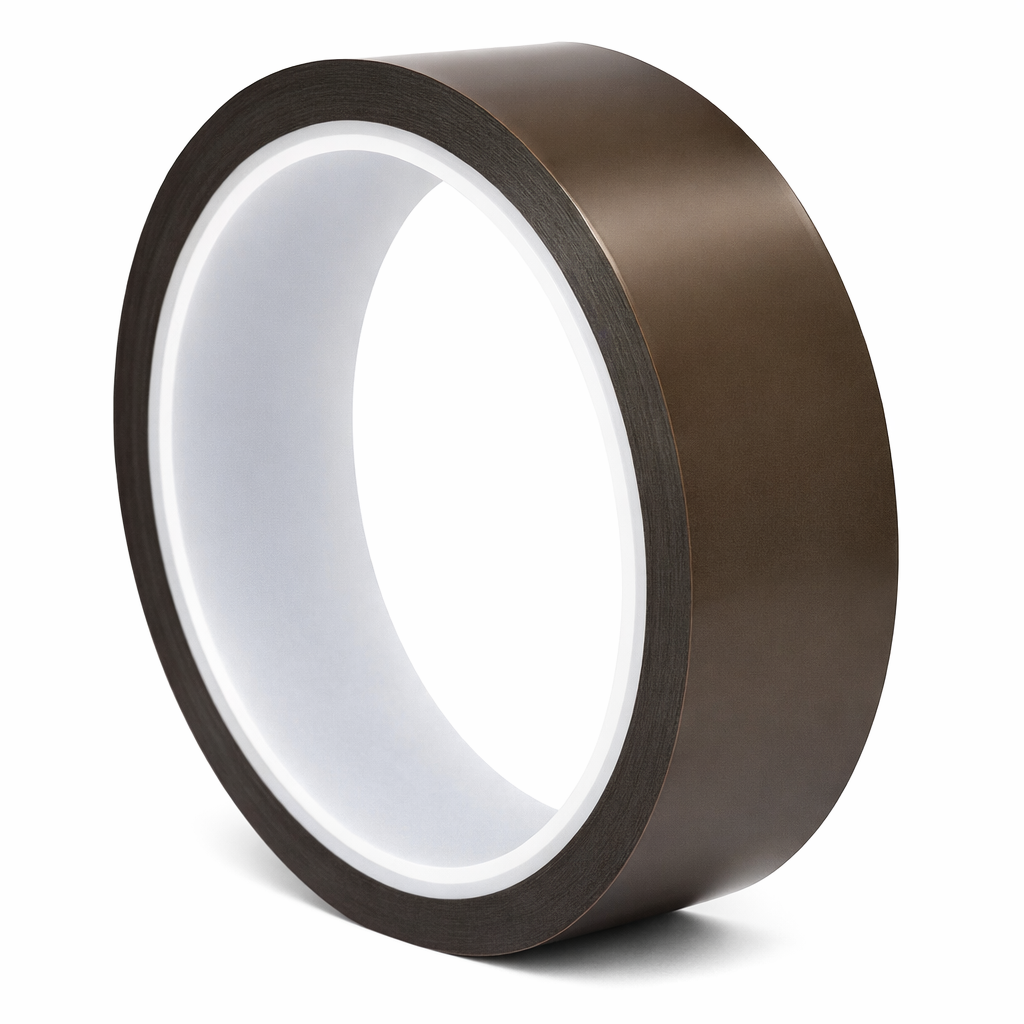

UltraTape X018

X018

Anti-Static Polyester Cleanroom Tape w/ Conductive Adhesive

UTX018 is a Polyimide film that has been coated with an anti-static silicone adhesive. The adhesive has been highly loaded with conductive particles in order to achieve the maximum static dissipation.

Backing Polyimide
Adhesive Filled Silicone (Polysiloxane)
Surface Resistivity 10³ - 10?? ohms
Backing Thickness 1.0 mil (0.025 mm)
Adhesive Thickness 1.4 mil (0.035 mm)
Adhesion to Steel 180 degree Peel 9 oz/inch (1N/cm)
Operating Temp -40°F to 500°F (-40°C to 260°C)
Elongation at Break NA
Tensile Strength 28 lbs./in (50 N/cm)
Length 36 yard
Available Colors Bronze (BZ)

Color Options

  • (BRZ) - Bronze

Standard Size Options

  • 0.50"
  • 0.75"
  • 1.00"

Cleanliness Levels

  • UltraClean Cleanliness at UltraTapeClick and drag to move UltraClean | Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
  • Classic Clean | Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards

* Samples are available for most products upon request
