UltraTape 7245 / 0245

7245

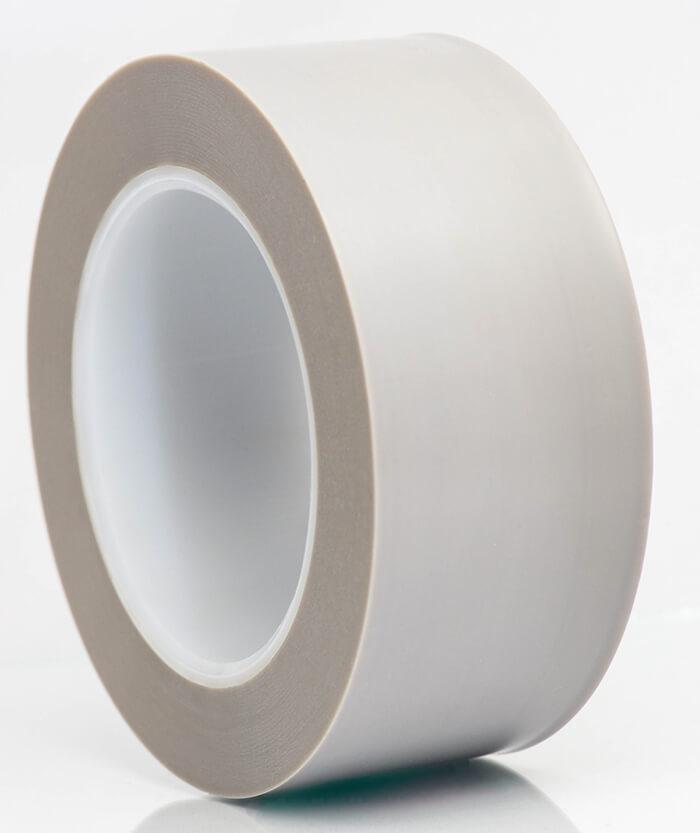

Teflon High Temperature Cleanroom Tape - 5 mil

Teflon (PTFE) high temperature tape with silicone adhesive. Used in electrical applications such as coil wraps, separators, transformers, slot liners and harness wrapping where good insulation and heat resistant properties are needed.

Backing Teflon
Adhesive Silicone
Total Thickness 5.0 mil
Adhesion to Steel 180 degree Peel 30 oz/inch min
Operating Temp -20 to +500° F
Elongation at Break 125%
Tensile Strength 18 lbs/in
Length 36 yds
Available Colors Grey

Color Options

  • (GY) - Gray

Standard Size Options

  • 0.50"
  • 0.75"
  • 1.00"

Cleanliness Levels

  • UltraClean Cleanliness at UltraTapeClick and drag to move UltraClean | Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
  • Classic Clean | Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards

* Samples are available for most products upon request
