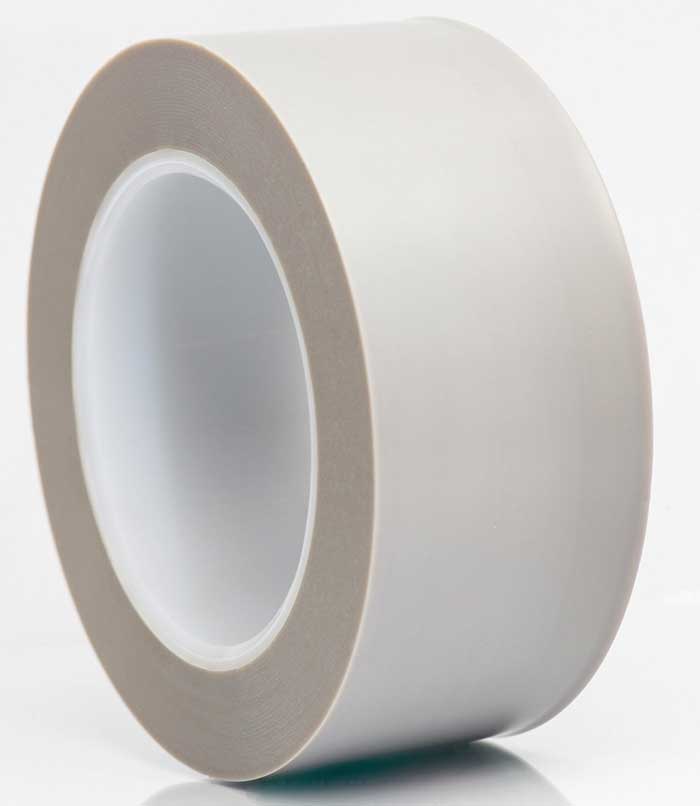

UltraTape 7243 / 0243
7243
Teflon High Temperature Cleanroom Tape - 3 mil
Teflon (PTFE) high temperature tape with silicone adhesive. Used in electrical applications such as coil wraps, separators, transformers, slot liners and harness wrapping where good insulation and heat resistant properties are needed.
| Backing | Teflon |
| Adhesive | Silicone |
| Total Thickness | 3.0 mil |
| Adhesion to Steel 180 degree Peel | 30 oz/inch min |
| Operating Temp | Up to +500° F |
| Elongation at Break | 125% |
| Tensile Strength | 13 lbs/in |
| Length | 36 yds |
| Available Colors | Grey |
Color Options
Standard Size Options
Cleanliness Levels
-
UltraClean
| Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
- Classic Clean | Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards
* Samples are available for most products upon request
