UltraTape 2265

2265

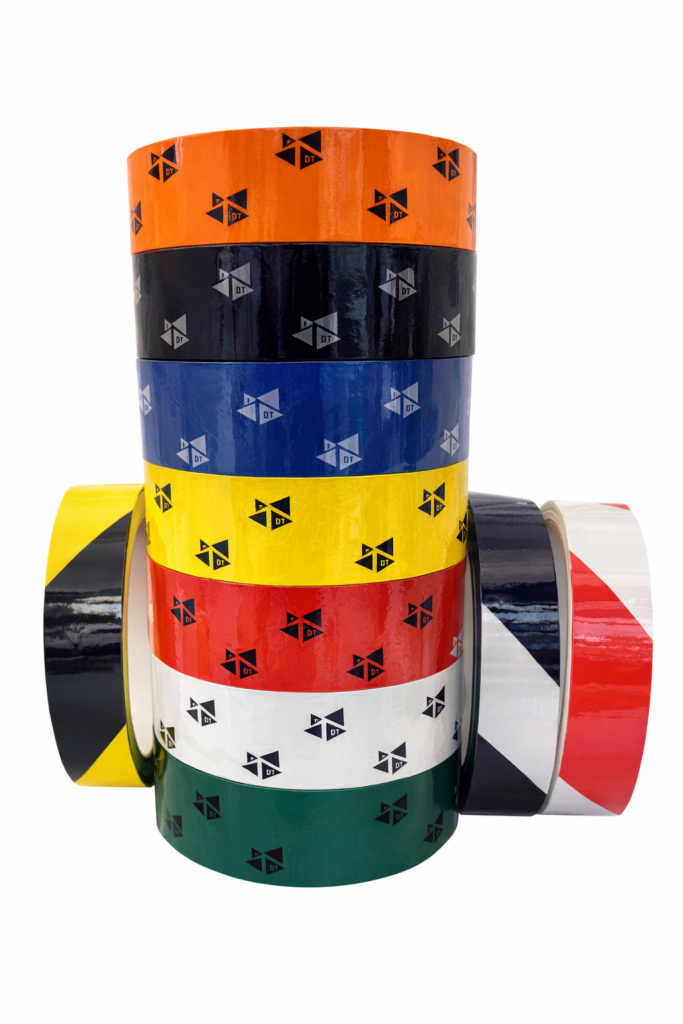

UltraTape Anti-Static Cleanroom Marking Tape w/ Printed ESD Symbol

UT2265 Cleanroom anti-static tape is available in multiple colors for floor, tool and safety marking as well as a wide range of applications where opaque colors are needed. Printed and overlaminated for extra durability and solvent resistance. Anti-static and cleanroom compatible. Bright opaque colors and black printed text. Solvent resistant. Excellent Durability.

Backing Vinyl base / PET over lamination / ESD Coated
Adhesive Acrylic / ESD Coated
Backing Thickness 5.5 mils (0.140mm)
Adhesive Thickness 1 mil (0.025mm)
Adhesion to Stainless Steel 28.8 oz./in. (800g kg/25mm)
Surface Resistance - Backing Side 10E9
Surface Resistance - Adhesive Side 10E10
Peeling Static Voltage Min 100 V
Elongation 80%
Available Colors Black (BK), Blue (BL), Black and White Stripe (BW), Green (GR), Red (RE), Red and White Stripe (RW), Orange (Or), White (WH) Yellow (YE), Black & Yellow Strip (BY)

Color Options

  • (BK) - Black
  • Black and White Stripe (BW)
  • (BL) - Blue
  • (GR) - Green
  • Orange (Or)
  • (RE) - Red
  • (WH) - White
  • (YE) - Yellow
  • (BY) - Black & Yellow Strip

Standard Size Options

  • 0.50"
  • 1.00"
  • 2.00"
  • 3.00"

Cleanliness Levels

  • UltraClean Cleanliness at UltraTape UltraClean | Class 1 (ISO Class 3) to Class 1,000 (ISO Class 6) Standards
  • Classic Clean | Class 10,000 (ISO Class 7) to Class 100,000 (ISO Class 8) Standards

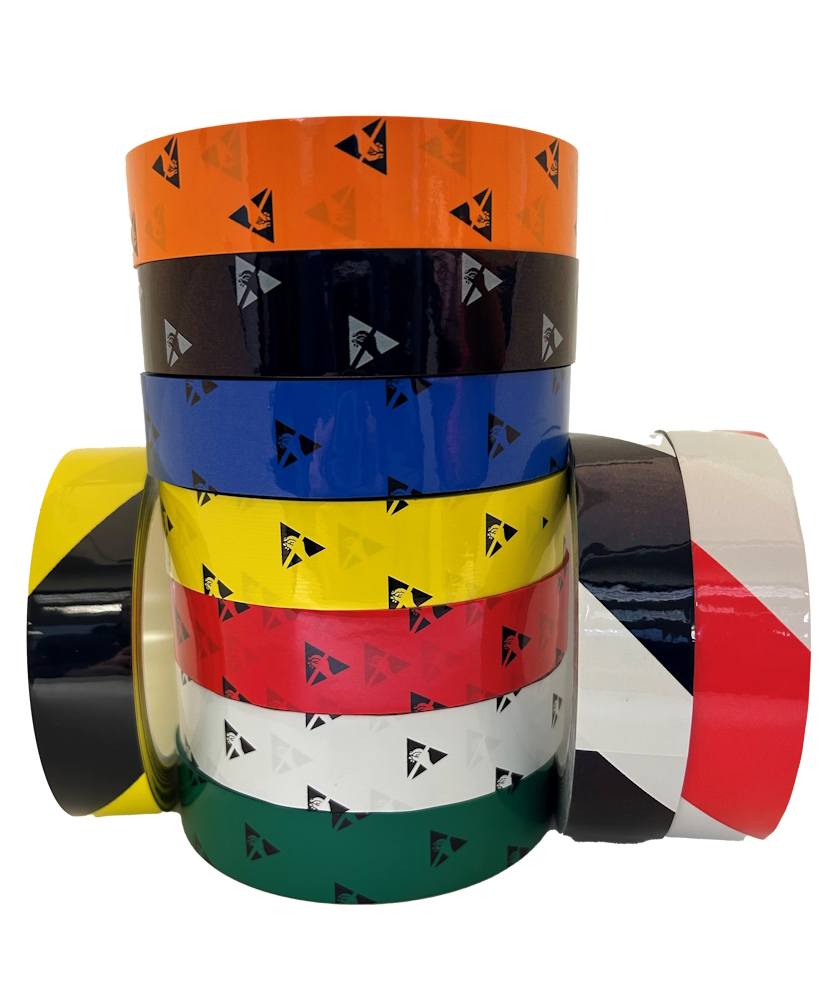

UT2265_2

* Samples are available for most products upon request
